High Brightness Double-Sided Window Screens
Show separate messages to people outside and inside your premises with a hanging double-sided display. The outward-facing panel is 3,500cd/m² and the inward-facing panel is 1,000cd/m²; we assess the window and mounting before installation.
Product overview
Commercial grade.
Locally supported.
Site survey, mounting, commissioning and handover by our own team.
Advice and aftercare across Northern Ireland and the Republic of Ireland.
Specifications at a glance
| Sizes and models | 49-inch UDS49HD10; 55-inch UDS55UHD10 |
|---|---|
| Outward-facing brightness | 3,500cd/m² |
| Inward-facing brightness | 1,000cd/m² |
| Mounting | Portrait; ceiling mounting with optional floor stand |
| Built-in player | Android 14; 4GB RAM; 32GB storage |
| Operating conditions | 24/7 operation; 0°C to 40°C |
| Screen depth | 80mm for both listed sizes |
| 55-inch resolution by side | UDS55UHD10 outward face: 1920 × 1080; inward face: 3840 × 2160 |
| Warranty | 3-year standard commercial warranty |
Choosing this range
For shopfronts that need messaging to people outside and customers inside. The brighter face points towards the window; confirm the ceiling structure and installation height before choosing the suspension arrangement.
Compare related options
- Double-Sided Window Displays — 700cd/m²: Compare the slimmer 700cd/m²-per-side range where both viewing directions need a similar brightness level.
- Ultra High Brightness Window Displays: Choose a single-sided window display if the inward-facing screen is unnecessary.
Models and sizes
Choose the
right format.
49” 55”
TECHNICAL LIBRARY
Specification downloads
49" Ultra High Brightness Hanging Double-Sided Displays - Spec SheetSpec sheet55" Ultra High Brightness Hanging Double-Sided Displays - Spec SheetSpec sheet
Need a user manual, installation guide or technical drawing? Ask our team and we will supply the correct document for the confirmed model.
Before we specify a screen
A system planned
around your site.
A product page is a useful starting point, but the correct display depends on where it will be used and what it needs to achieve. Digi Sign checks the installation environment before confirming a model, so the screen, mounting method and content platform work together.
We assess indoor or outdoor use, ambient light, viewing distance and the direction customers approach from. This helps us confirm brightness, screen size and orientation.
We discuss daily operating hours, expected content, network access and whether staff need remote updates across one location or several sites.
Wall structure, cable routes, power, ventilation and service access are considered before installation. Our team can survey, install, commission and hand over the complete system.
Where suitable, ScreenZeno provides cloud content management. Zoe can help prepare on-brand layouts, while Raphael and Corey support the technical delivery and aftercare.
Common questions
What should I know
before ordering?
When is a double-sided window display useful?
Choose a double-sided display when you want separate messages for people outside and customers inside. This range has a 3,500cd/m² outward-facing screen and a 1,000cd/m² inward-facing screen.
Is the 55-inch model 4K on both sides?
No. On the listed UDS55UHD10, the outward face is Full HD at 1920 × 1080 and the inward face is 4K at 3840 × 2160. Content needs to be prepared for the correct resolution on each side.

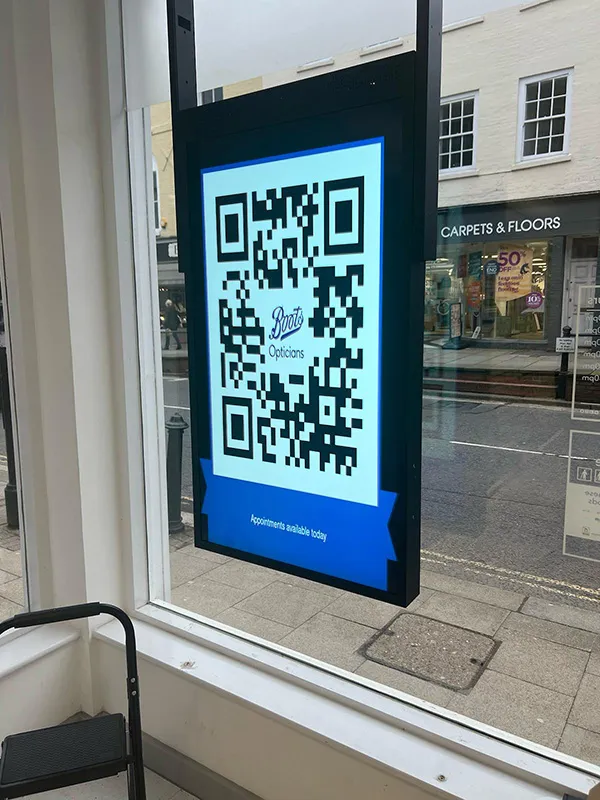

How is a double-sided display mounted?
The listed range uses portrait ceiling mounting, with an optional floor stand. We check the structure, fixing method, screen height, cable route and service access before confirming the installation.
Can I manage different messages on the two screens?
Separate inward- and outward-facing messages can be managed with suitable software and the required network setup. We confirm the playback arrangement, connectivity and any licence costs in the proposal.
